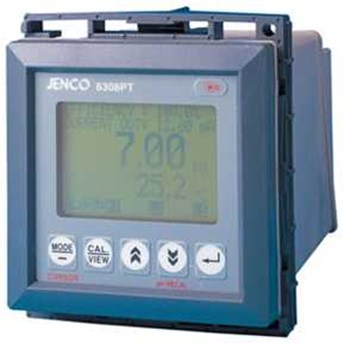

JENCO pH, Temperature In-line Analyzer 6308PT

Description 1/ 4 DIN panel mount pH single parameter analyzer with electrode efficiency display function. Features pH linear or antilog transmitter output, hysteresis control and uninterrupted operation during pH calibration. Has one 4-20mA output, 5 relays and a RS-485 communications interface. Graphical display. 115/ 230V AC. CE Approved. * Bright, graphical LCD display, 1.5 x 2.25 * Simultaneous measurement and analysis * 1/ 4 DIN watertight, ip65 rated enclosure * Reversible & isolated 4 to 20ma output with adjustable bandwidth * Continuous controller / relays operation during calibration * 4-digit password security protection * Programmable set point hysteresis * Automatic temperature compensation * CE approved * Built in ISO9001 certified facility * Membrane keypad with audio feedback * Power down, non-volatile memory backup * RS-485 output * Multiple spst on/ off relays * Embedded self diagnostic program * High 50/ 60 hz noise rejection Specifications pH Range : -2.00 to 16.00 Resolution : 0.01 pH Accuracy : 0.1% ± 1 lSD Temp. Range : -10.0 to 120 ° C Resolution : 0.1 ° C Accuracy : ± 0.3 ° C pH * Temperature compensation range: -10.0 to 120.0 ° C * Buffer recognition: 4.01, 7, 10.01 / 4.00, 6.86, 9.18 * Buffer temperature range: 0 to 60.0 ° C * Electrode slope compensation: ± 30% of ideal slope * Electrode offset compensation: ± 100 mV * Input impedance: Greater than 10 exp( 13) ohms * Calibration auto end point sensing: Yes Output Relays * pH: 2programmable high or 2 low * Temperature: 1programmable high or 1 low * Control type: On/ off * Relay output ( resistive load only) : 5amps at 115 VAC 2.5 amps at 230 VAC * Relay set point hysteresis: User programmable Current Output * Type: Isolated 4 to 20 mA * Range: Selectable zero, & span * Accuracy: ± 0.02mA * Isolated voltage: 500 VDC * Maximum load: 500 w General * ATC sensor: Thermistor 10kilo ohms at 25 c * Security protection: 4digit password * Keypad: Audio feedbackup * Communication: RS-485 * Pre-amplifier voltage: ± 5 VDC, 20mA max output * Power source: 115/ 230 VAC, 50/ 60hz * Dimensions: 1/ 4 DIN, depth 148mm * Weight: 950 gm
